$1,876 $2,000
Available for a limited time
Enter Shipping Address

product badges

Product Description Shipping Returns

Overview
Quick Details
Properties:
The Basis of Surgical Instruments, The Basis of Surgical Instruments
Type:
Knife, bipolar & monopolar
Brand Name:
Inter
Model Number:
BC-50D
Place of Origin:
Anhui, China (Mainland)
Function:
cutting and coagulation
colour:
white and sky blue
Usage:
Ordinary surgery unit
Kind of working model:
cutting,coagulation,bipplar
Main Frequency:
625kHz±5%
Main Supply:
AC220V±10% 50Hz±2%
Feature:
Knife
Certificate:
CE, ISO9001, ISO13485
Packaging & Delivery
Packaging Details
Export stardard packing 85%SKD/50%SKD 1PCS/CTN or 2PCS/CTN
Delivery Time
15 working days after receiving 30% in deposit
Product Description

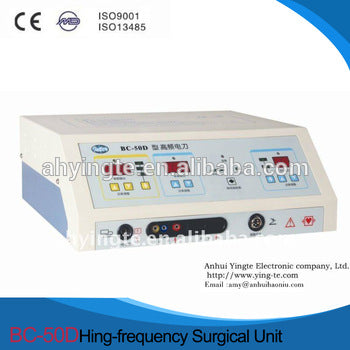

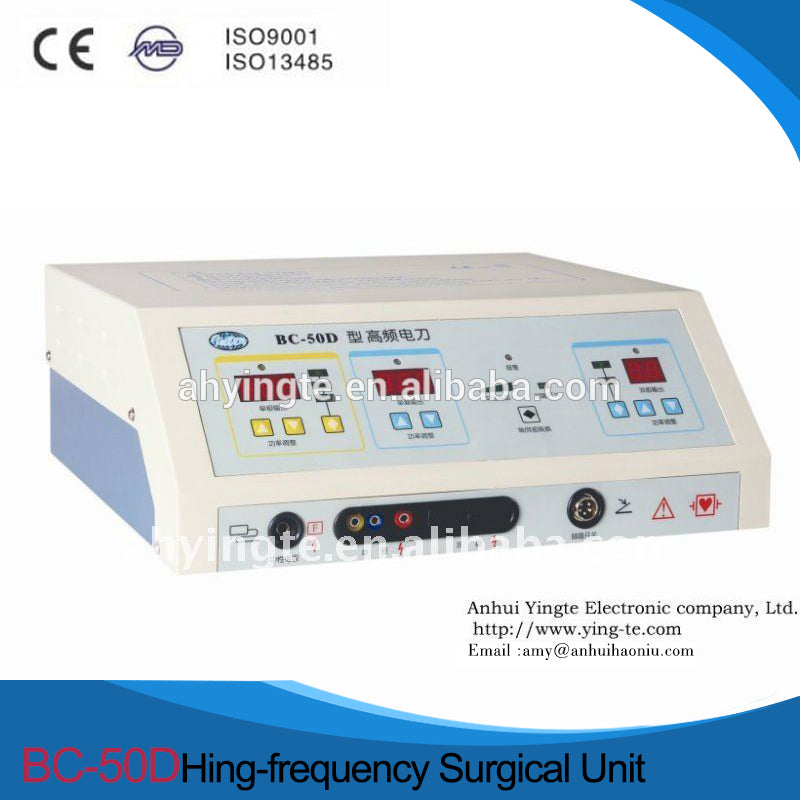

BC-50D High Frequency Electrosurgical Unit

basic surgical instruments

modern surgical instruments


Specifications:

1. bipolar & monopolar
2.5 modes
3.for general surgery
4.CE, ISO9001, ISO13485
5. Classification: Class I Type CF
6. Main Frequency: 625kHz±5% Modulate Frequency: 25kHz±5%
7. Working Mode: Intermittent and continuous working, 10s/30s
8. Output power and peak voltage:

Spec. Mode
Output Power
Power Range
Resistance
Monopolar Pure cutting
5~350W
500Ω
Monopolar Blend 1
5~250W
500Ω
Monopolar Blend 2
5~200W
500Ω
Monopolar Contact Coagulation
5~200W
500Ω
Bipolar Standard Coagulation
2~70W
150Ω

9. Automatic Storage: The working mode and output power set during operation can be stored in the unit for 100 years.
10. High Frequency Leakage Current
The neutral electrode is isolated from the earth during the high frequency operation, the High Frequency Leakage Current <150mA.
11. Output Channels: Monopolar: 1 channel, Bipolar: 1 channel.
12. Output Setting and Indicating: The output is set by key pressing in different area according to different working mode, it is displayed digitally.
13. Output Indicating
Visual Indicator: Monopolar Cutting - Yellow / Coag - Blue / Bipo - Blue Audio Indicator: When the power is output, there is an audio indicator, the volume can be adjusted.
14. Error Indicating
Visual Indicator: The red indicator indicating the error and danger detected by self-detecting or monitoring (ALARM);
Audio Indicator: When alarming, there is an pulse audio indicating, this volume cannot be adjusted.
15. Output Control
Monopolar: Hand Control, Foot Control; Bipolar: Foot Control, Automatic Control.
16. Main Supply: AC220V±10% 50Hz±2%
17. Dimension: 410mm×320mm×155mm
18. Net Weight: 5 kg
19. Operation Condition:
Environment Temperature: +5°C~+40°C
Relative Humidity: ≤85%
20. Transport and Storage Condition:
Environment Temperature: -40°C~+50°C
Relative Humidity: ≤90%

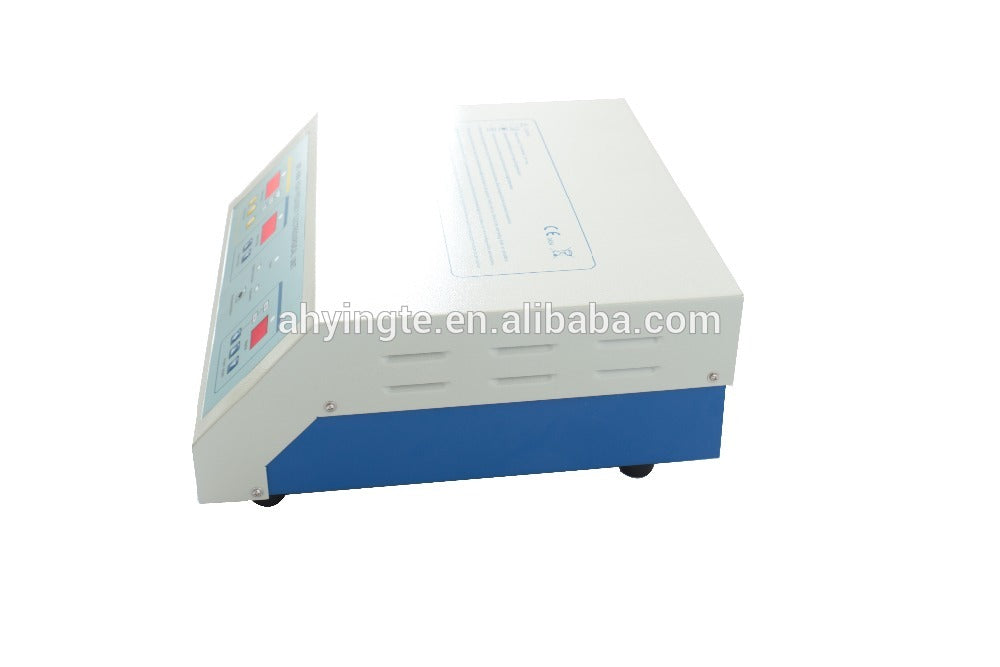

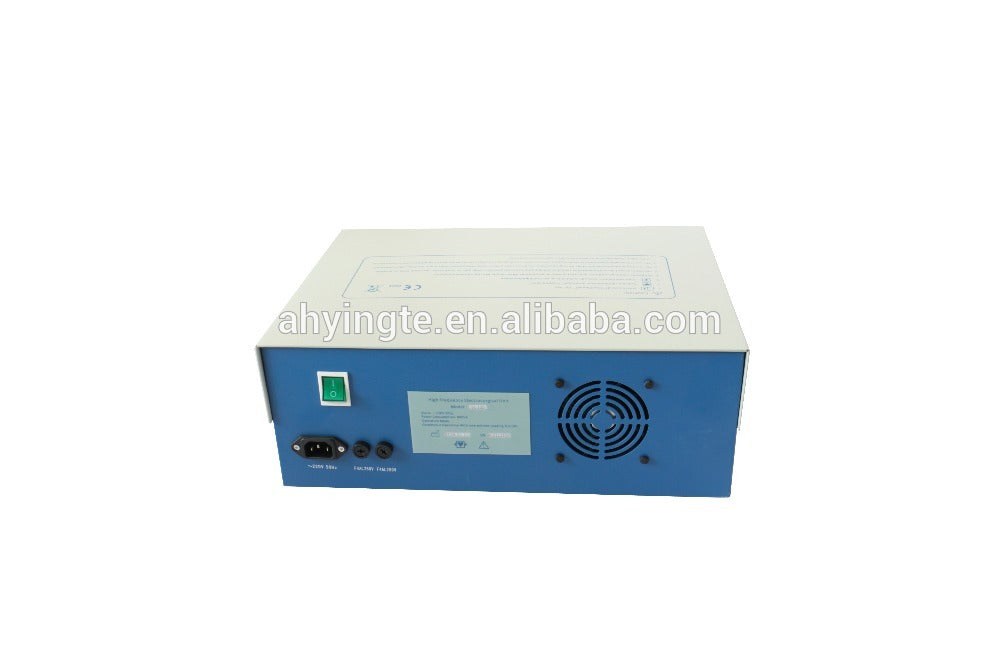

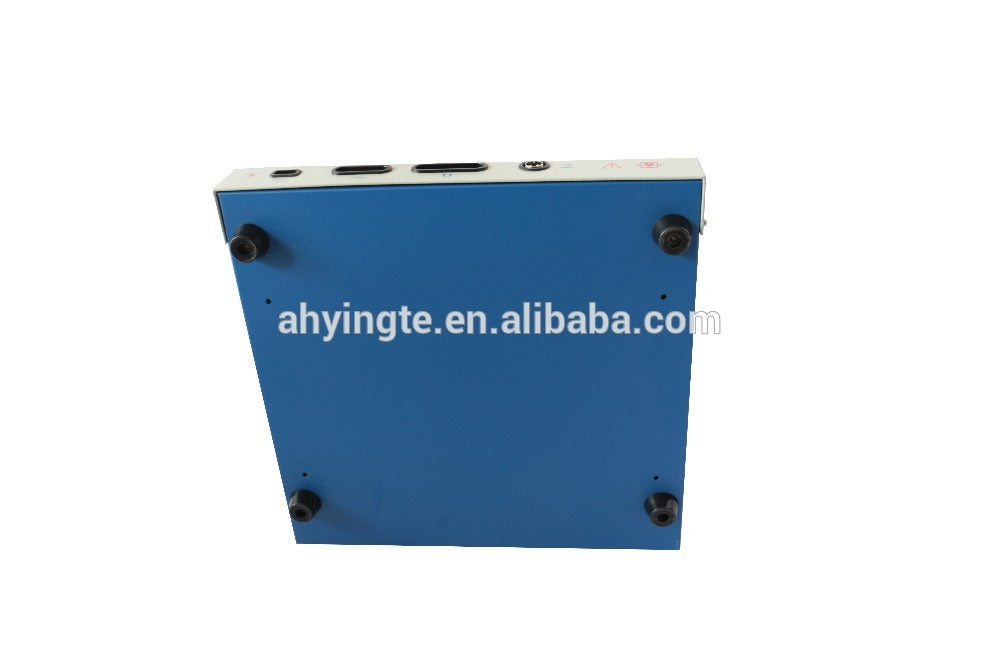

Detailed Image

Machine Features

Name: Electrosurgical Unit
Brand: Inter
Original: China
Domestic famous Electrosurgical Unit with good quality,all products are both have a set of monopolar electrode,bipolar electrode.


Main Part
Name: Monopolar Electrode
Brand: Inter
Original: China
Domestic famous manufacturer with long history,yellow button for cutting,blue one for coagulation,or we have foot control.


Main Part
Name: Bipolar Electrode
Brand: Inter
Original: China
Domestic famous bipolar electrode for cycle use,export to Europe ,Middle-east countries,South-east countries and domestic hospital.


Main Features
Name: Netural Electrode
Brand: Inter
Original: China
Single use netural electrode for adult and children


Packing & Delivery
Certifications
Our Company

Anhui Yingte Electronic Company Ltd. is a professional medical equioment in the development, production, marketing high-tech enterprises, located in Bengbu High/New Tech Industrial Development Zone.
Main products: BC-50 Series High Frequency Electrosurgical Unit, Bipolar Coagulation, LEEP Surgical System, Monopolar Electrode, Neutral Electrode(NE), Bipolar Electrode, Plexiglass Fumigator and Programmable Fumigator and so on. Among them BC-50 Series High Frequency Electrosurgical Unit was recongnized as "National New Product" by National Science Committee, ICBC, Minister of Labour and Social Security, National Bureau of Foreign Experts and General Administration of Quality Supervision, Inspection and Quarantine.

FAQ

1. Warranty of the machine?
----Usually warranty is 1 year.

2. When will you delivery the machines?
----Your order will be arranged immediately when we received full payment.

3. Do you have stock?
---Usually delivery time is around 1 week, some models may have stock.

Our Service

Warmly welcome to contact us for more detail information about our products and looking forward to starting win-win cooperation with you!

When ordering our supplies please allow 3-4 weeks for delivery inside the United States, we ship using USPS and you will receive a tracking number within the first 5 days of ordering. During holiday season please allow up to 5 weeks for delivery due to high demand.

We will accept returns if a mistake was made on our side (which will likely never happen).

All items must be returned within 30 days and must be unused and unused. They also cannot be tampered with or damaged.

If the worst has happened and you'd like to do a return, please send us an email at contactus@surgicaltoolbox.us
